SPECIFICATIONS
Brand Name: SURPASS HOBBY
Origin: Mainland China
Material: Metal
Recommend Age: 14+y
Recommend Age: 3-6y
Recommend Age: 6-12y
RC Parts & Accs: Engines
Size: 540 550
For Vehicle Type: Cars
Use: Vehicles & Remote Control Toys
Certification: CE
Certification: FCC
Certification: RoHS
Certification: UL
Upgrade Parts/Accessories: Gear
Remote Control Peripherals/Devices: ESC
Tool Supplies: Assembled class
Model Number: brushed motor
Four-wheel Drive Attributes: Motors

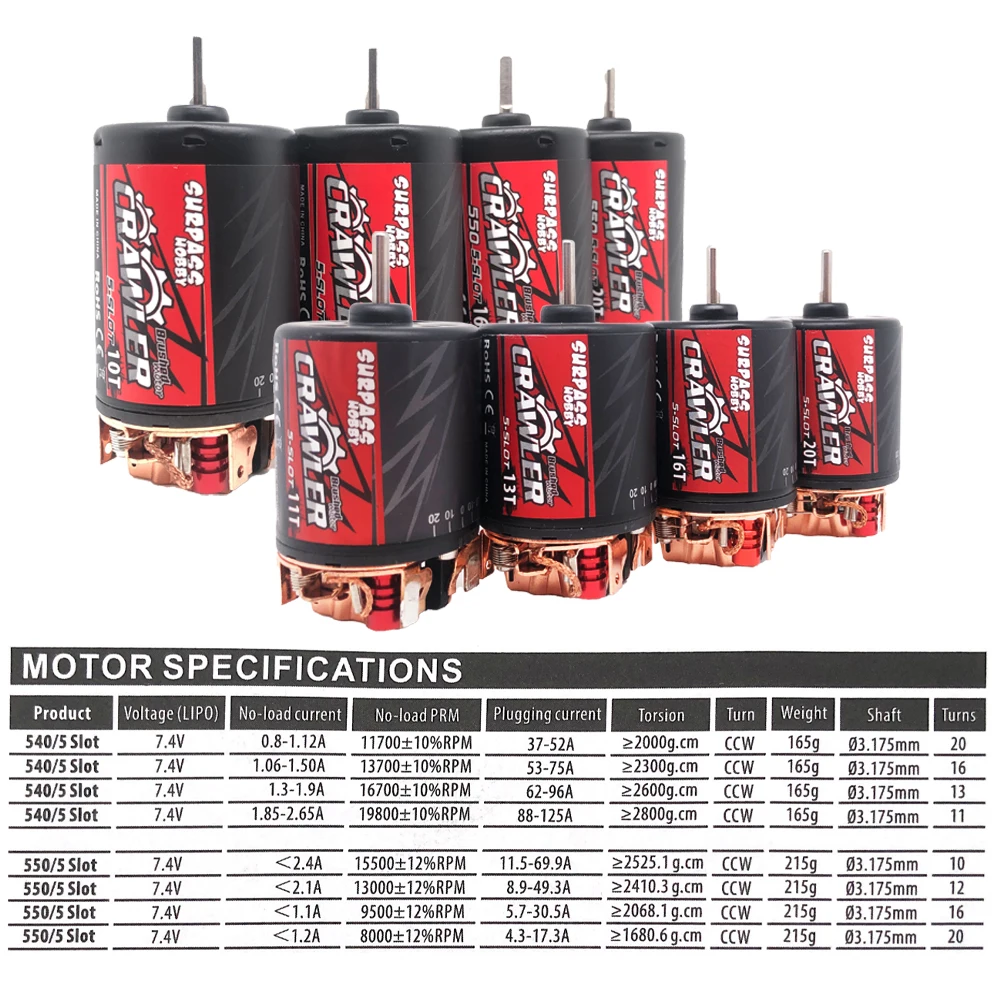

540 Brushed motor Specifications:
Brand: Surpass Hobby
Type: 540/5 Slot
Suit for 1/10 RC Crawlers Car
Voltage(LIPO):7.4V
Shaft dia: 3.175mm
Motor dia: 36mm
Weight: 165g
Turn:CCW
540/5 Slot 11T
Turns:11T
No-load current:1.85-2.65A
No-load PRM:19800±10%RPM
Plugging current:88-125A
Torsion:≥2800 g.cm
540/5 Slot 13T
Turns:13T
No-load current:1.3-1.9A
No-load PRM:16700±10%RPM
Plugging current:62-96A
Torsion:≥2600 g.cm
540/5 Slot 16T
Turns:16T
No-load current:1.06-1.50A
No-load PRM:13700±10%RPM
Plugging current:53-75A
Torsion:≥2300 g.cm
540/5 Slot 20T
Turns:20T
No-load current:0.8-1.12A
No-load PRM:11700±10%RPM
Plugging current:37-52A
Torsion:≥2000 g.cm
550 Brushed motor Specifications:
Brand: Surpass Hobby
Brand: Surpass Hobby
Suit for 1/10 RC Crawlers Car
550/5 Slot 10T :
Vlotage: 7.4V(2S Lipo)
550/5 Slot 10T :
Vlotage: 7.4V(2S Lipo)
No-load RPM: 18500±10%
No-load IO: 1.85-2.65A
Current: 88-125A
Shaft: 3.175*12mm
Connector: 3.5mm
550/5 Slot 12T:
Vlotage: 7.4V(2S Lipo)
No-load RPM: 13400±10%
No-load IO: 1.3-1.9A
Current: 62-96A
Shaft: 3.175*12mm
Connector: 3.5mm
Current: 88-125A
Shaft: 3.175*12mm
Connector: 3.5mm
550/5 Slot 12T:
Vlotage: 7.4V(2S Lipo)
No-load RPM: 13400±10%
No-load IO: 1.3-1.9A
Current: 62-96A
Shaft: 3.175*12mm
Connector: 3.5mm
550 /5 Slot 16T:
Turns: 16T
Vlotage: 7.4V(2S Lipo)
No-load RPM: 9500±12%
No-load Current: <1.1A
Plugging Current: 1.1A
Torsion: 2068.1g.cm
Shaft: 3.175mm
Turn: CCW
Vlotage: 7.4V(2S Lipo)
No-load RPM: 9500±12%
No-load Current: <1.1A
Plugging Current: 1.1A
Torsion: 2068.1g.cm
Shaft: 3.175mm
Turn: CCW
550/5 Slot 20T:
Turns: 20T
Vlotage: 7.4V(2S Lipo)
No-load RPM: 8000±12%
No-load Current: <1.2A
Plugging Current: 1.0A
Torsion: 1680.6 g.cm
Shaft: 3.175mm
Turn: CCW
Vlotage: 7.4V(2S Lipo)
No-load RPM: 8000±12%
No-load Current: <1.2A
Plugging Current: 1.0A
Torsion: 1680.6 g.cm
Shaft: 3.175mm
Turn: CCW

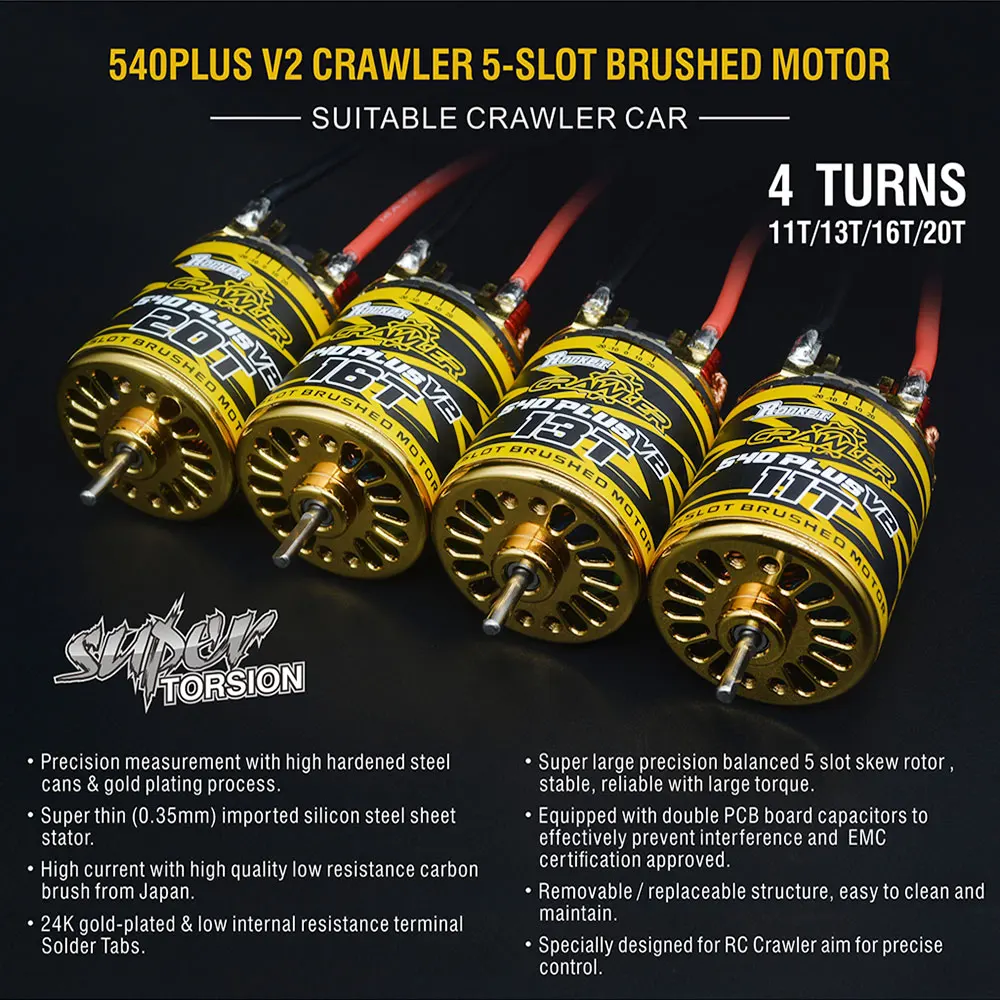

Features:
Precision measurement with high hardened steel cans gold plating process
Super thin (0. 35mm)imported silicon steel sheet stator
High current with high quality low resistance carbon brush from Japan
24K gold-plated & low internal resistance terminal Solder Tabs
Super large precision balanced 5 slot skew rotor stable , reliable with large torque
Equipped with double PCB board capacitors to effectively prevent interference and EMC certification approved

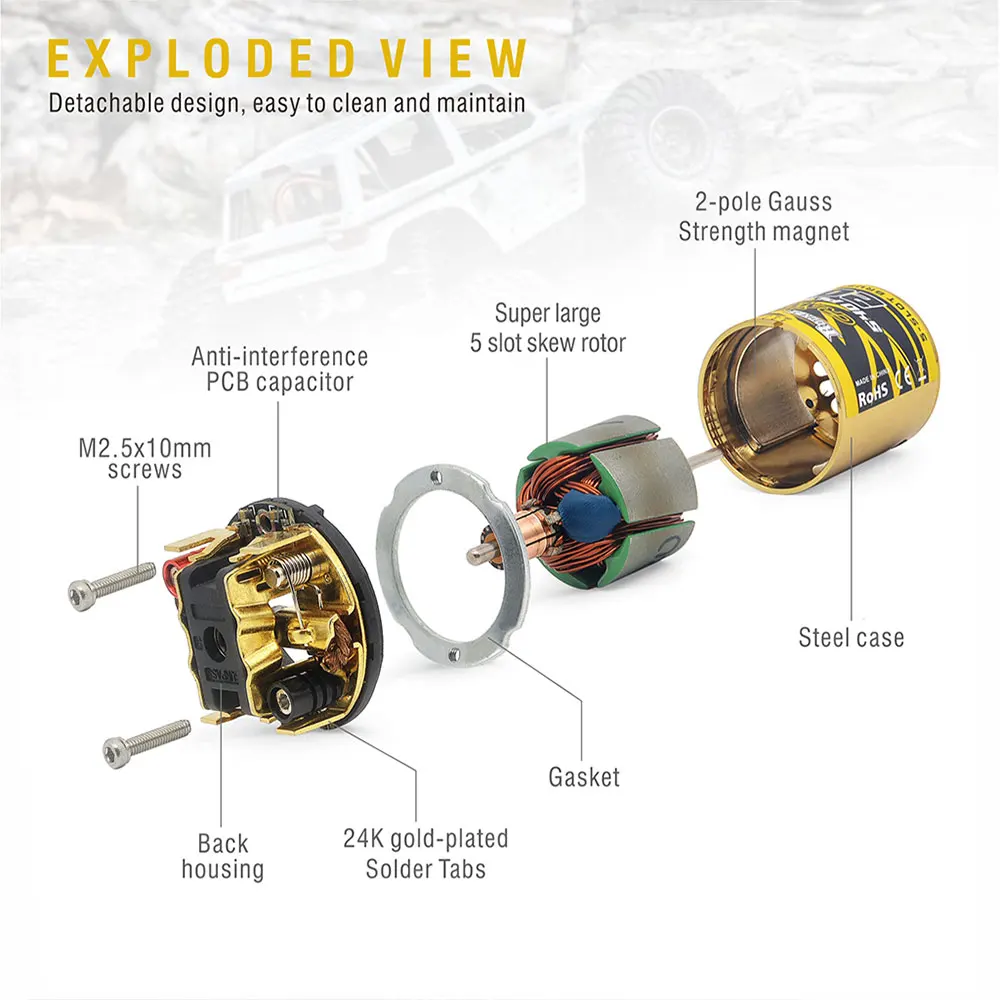

Removable / replaceable structure , easy to clean and maintain
Specially designed for RC Crawler aim for precise control

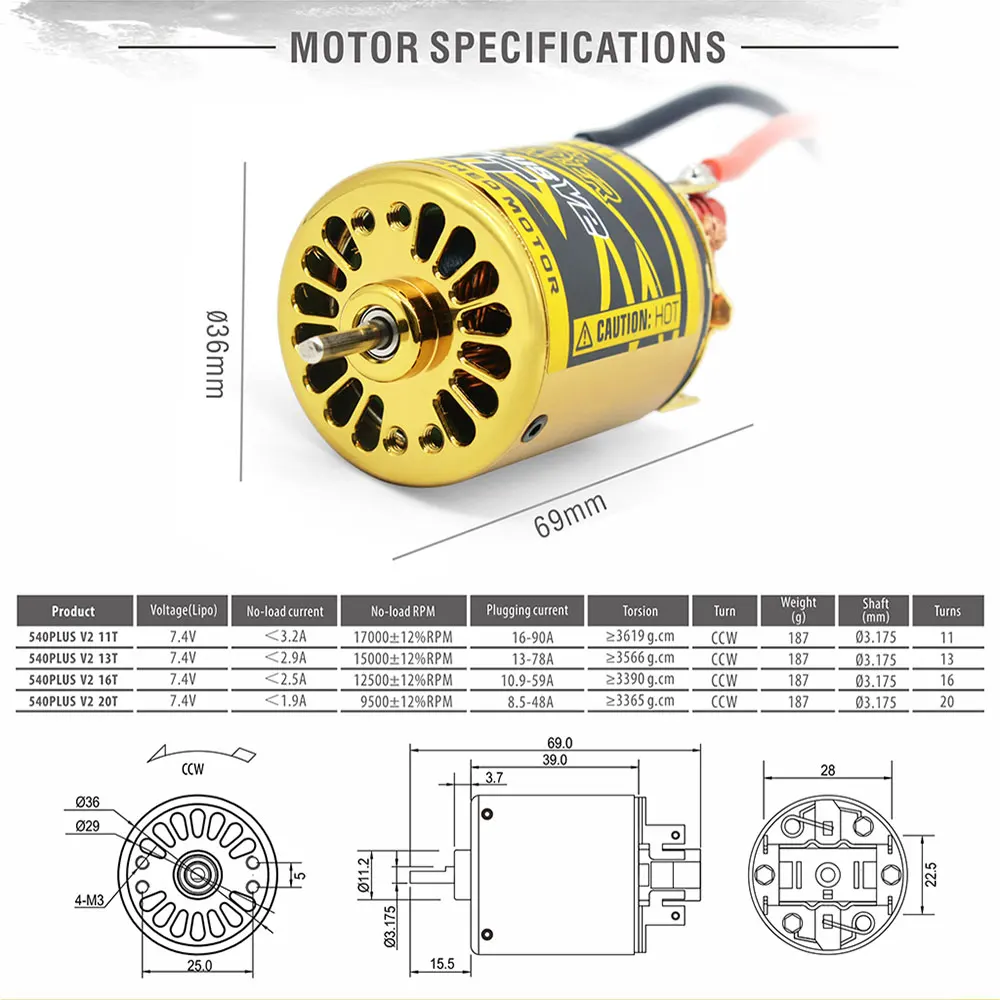

SPECIFICATION :
540 plus V2 11T
Voltage(lipo) : 7.4V
NO-load current:< 3.2A
Current:16-90A
WEIGHT:187
TURN:CCW
Shaft:3.175
540 plus V2 13T
Voltage(lipo) : 7.4V
NO-load current:<2.9A
Current:13-78A
WEIGHT:187
TURN:CCW
Shaft:3.175
540 plus V2 16T
Voltage(lipo) :7.4V
NO-load current;<2.5A
Current:10.9-59A
WEIGHT:187
TURN:CCW Shaft:3.175
540 plus V2 20T
Voltage(lipo) : 7.4V
NO-load current:< 1.9A
Current:8.5-48A
WEIGHT:187
TURN:CCW
Shaft:3.175
Specifications:
Brand: Surpass Hobby
Type: 550 12T 14T 20T 25T 30T 35T
Suit for 1/10 RC Crawlers Monster Truck Car
Voltage(lipo):7.4V
Shaft dia: 3.175mm
Motor dia: 36mm
Color: Black
Type: 550 12T 14T 20T 25T 30T 35T
Suit for 1/10 RC Crawlers Monster Truck Car
Voltage(lipo):7.4V
Shaft dia: 3.175mm
Motor dia: 36mm
Color: Black
550 3-Slot 12T For Truck
Turns:12T
No-load current:＜2.4A
No-load PRM:26000±12%RPM
Plugging current:18.9-82.4A
Torsion:≥2301.4 g.cm
550 3-Slot 14T For Truck
Turns:14T
No-load current:＜2.2A
No-load PRM:23000±12%RPM
Plugging current:13.7-76.4A
Torsion:≥2670.0g.cm
550 3-Slot 20T For Truck
Turns:20T
No-load current:＜1.7A
No-load PRM:16000±12%RPM
Plugging current:10.9-62.1A
Torsion:≥2537.6g.cm
550 3-Slot 25T For Truck
Turns:25T
No-load current:＜1.3A
No-load PRM:13000±12%RPM
Plugging current:10.3-51.9A
Torsion:≥2190.4g.cm
550 3-Slot 30T For Crawler
Turns:30T
No-load current:＜1.1A
No-load PRM:11000±12%RPM
Plugging current:9.7-37.6A
Torsion:≥2100.2g.cm
550 3-Slot 35T For Crawler
Turns:35T
No-load current:＜0.85A
No-load PRM:9500±12%RPM
Plugging current:6.9-29.5A
Torsion:≥2000.1g.cm
Specifications:
Brand: SURPASS HOBBY
Brand: SURPASS HOBBY
Model: 540
The latest 540 brush motor,
large torque suitable for climbing car big foot car drift car ,
two-way bearing strong magnetic force,
small heat big power,
can also change the carbon brush,
because the carbon brush external configuration,
can work for a long time.
The latest 540 brush motor,
large torque suitable for climbing car big foot car drift car ,
two-way bearing strong magnetic force,
small heat big power,
can also change the carbon brush,
because the carbon brush external configuration,
can work for a long time.
Type: 540 13T
Turns:13
Voltage(LIPO): 7.2V
No-load current :≤ 5.0A
No-load PRM: 29000±10%
Plugging current:≤31A
Torsion :≥440g.cm
Turn:CCW
No-load PRM: 29000±10%
Plugging current:≤31A
Torsion :≥440g.cm
Turn:CCW
Screw hole: 4 * M3
Shaft dia: 3.175mm
Shaft length: 12mm
Motor dia: 36mm
Motor length: 53mm
Type: 540 17T
Turns:17
Voltage(LIPO): 7.2V
No-load current :≤ 4.2A
No-load PRM: 26000±10%
Plugging current:≤105A
Torsion :≥1700g.cm
Turn:CCW
No-load PRM: 26000±10%
Plugging current:≤105A
Torsion :≥1700g.cm
Turn:CCW
Screw hole: 4 * M3
Shaft dia: 3.175mm
Shaft length: 12mm
Motor dia: 36mm
Motor length: 53mm
Type: 540 21T
Turns:21
Voltage(LIPO): 7.2V
No-load current :≤ 2.8A
No-load PRM: 20000±10%
Plugging current:≤105A
Torsion :≥1800g.cm
Turn:CCW
No-load PRM: 20000±10%
Plugging current:≤105A
Torsion :≥1800g.cm
Turn:CCW
Screw hole: 4 * M3
Shaft dia: 3.175mm
Shaft length: 12mm
Motor dia: 36mm
Motor length: 53mm
Type: 540 23T
Turns:23
Voltage(LIPO): 9.6V
No-load current :≤ 2.8A
No-load PRM: 24500±10%
Plugging current:≤120A
Torsion :≥2000g.cm
Turn:CCW
No-load PRM: 24500±10%
Plugging current:≤120A
Torsion :≥2000g.cm
Turn:CCW
Screw hole: 4 * M3
Shaft dia: 3.175mm
Shaft length: 12mm
Motor dia: 36mm
Motor length: 53mm
Type: 540 27T
Turns:27
Voltage(LIPO): 7.2V
No-load current :≤ 2.7A
No-load PRM: 16800±10%
Plugging current:≤84A
Torsion :≥1800g.cm
Turn:CCW
No-load PRM: 16800±10%
Plugging current:≤84A
Torsion :≥1800g.cm
Turn:CCW
Screw hole: 4 * M3
Shaft dia: 3.175mm
Shaft length: 12mm
Motor dia: 36mm
Motor length: 53mm
Type: 540 35T
Turns:35
Voltage(LIPO): 7.2V
No-load current :≤ 1.7A
No-load PRM: 12800±10%
Plugging current:≤56A
Torsion :≥1700g.cm
Turn:CCW
No-load PRM: 12800±10%
Plugging current:≤56A
Torsion :≥1700g.cm
Turn:CCW
Screw hole: 4 * M3
Shaft dia: 3.175mm
Shaft length: 12mm
Motor dia: 36mm
Motor length: 53mm
Type: 540 45T
Turns:45
Voltage(LIPO): 7.2V
No-load current :≤ 1.4A
No-load PRM: 9800±8%
Plugging current:≤51A
Torsion :≥1700g.cm
Turn:CCW
No-load PRM: 9800±8%
Plugging current:≤51A
Torsion :≥1700g.cm
Turn:CCW
Screw hole: 4 * M3
Shaft dia: 3.175mm
Shaft length: 12mm
Motor dia: 36mm
Motor length: 53mm
Type: 540 55T
Turns:55
Voltage(LIPO): 7.2V
No-load current :≤ 1.0A
No-load PRM: 8100±10%
Plugging current:≤38.5A
Torsion :≥1700g.cm
Turn:CCW
No-load PRM: 8100±10%
Plugging current:≤38.5A
Torsion :≥1700g.cm
Turn:CCW
Screw hole: 4 * M3
Shaft dia: 3.175mm
Shaft length: 12mm
Motor dia: 36mm
Motor length: 53mm
Type: 540 80T
Turns:80
Voltage(LIPO): 7.2V
No-load current :≤ 0.85A
No-load PRM: 5300±8%
Plugging current:≤20.4A
Torsion :≥1500g.cm
Turn:CCW
No-load PRM: 5300±8%
Plugging current:≤20.4A
Torsion :≥1500g.cm
Turn:CCW
Screw hole: 4 * M3
Shaft dia: 3.175mm
Shaft length: 12mm
Motor dia: 36mm
Motor length: 53mm
Specifications:

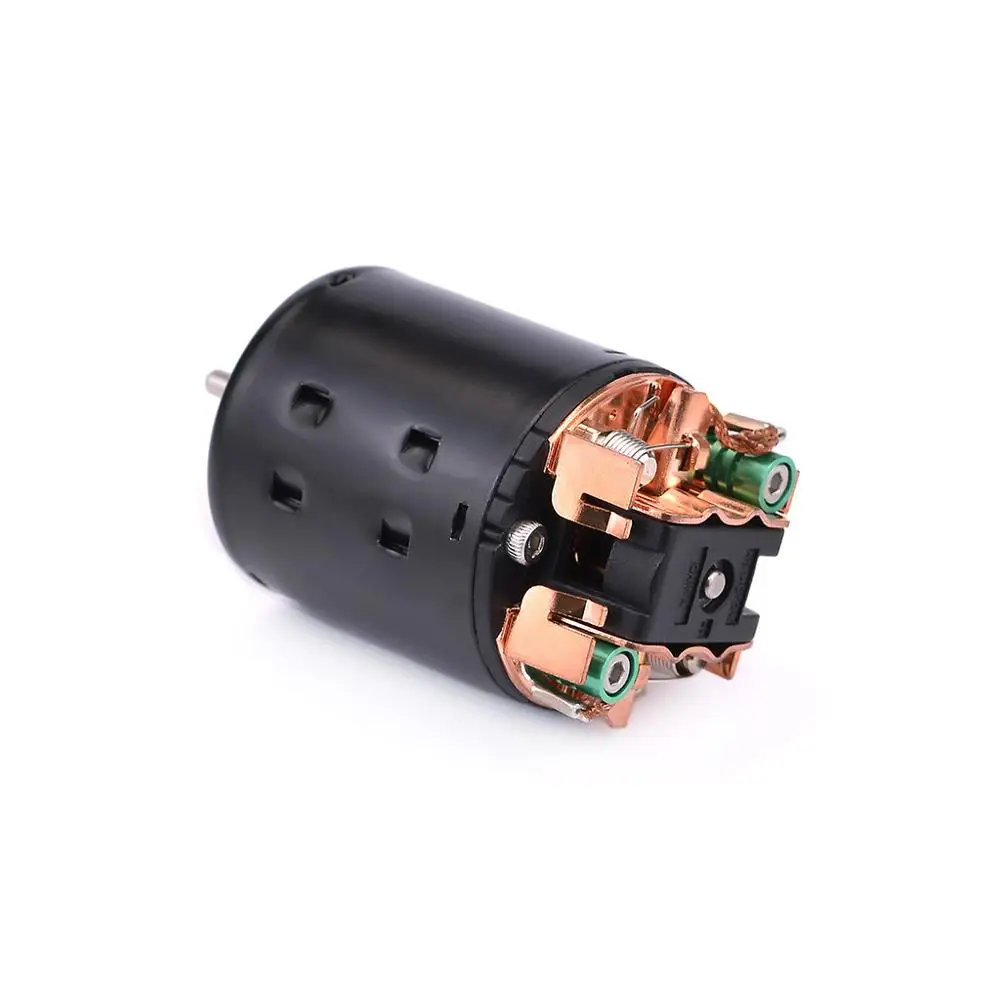

550 3-Slot Brushed Motor (Black)Features:
550 motor size, 3.175mm output shaft.
Virtually maintenance-free operation and long-lasting performance.
Heat-resistance running motors allow faster speeds, longer runtime, and extended motor life.
Precision balanced rotor, smoothness for best reliability and maximum RPM.
Suitable for HSP HPI Wltoys Kyosho TRAXXAS brushed 1/10 RC car.
550 21T Specifications:
Item brand: SURPASS HOBBY
Item name: Brushed Motor
Size: 550
Color: White and Black optional
Max voltage: 7.4V
Max current: 26A
Resistance: 0.0043
Watts: 600
Turns: 21
Max RPM: 13000
Shaft diameter: 3.175mm
Connector: 3.5mm gold
Suitable for: HSP HPI Wltoys Tamiya FS Kyosho TRAXXAS Yokomo RC Car
Weight: 240g
550 27T Specifications:
Brand name: Surpass Hobby
Color: Black
Size: 550
Turns: 27T
Watts: 600W
Max voltage: 7.2V
Max Amps: 22A
IO: 1.9A
Resistance: 0.0043
KV(RPM/Volt): 27T
Max RPM: 11000
Diameter: 35.6mm
Length: 57.5mm
Length of extend shaft: 16.5mm
Shaft diameter: 3.175mm
Connector: 3.5mm gold
Weight: About 233g
550 35T Specifications:
Item: 550 35T Brushed Motor
Size: 550
Turns: 35T
Max voltage: 24V
No-load current: 0.55A
Recommend battery: 2-6S
KV(RPM/Volt): 7600PRM/7.4V
Length of extend shaft: 16.5mm
Shaft diameter: 3.175mm
Connect Wire: 14AWG
Weight: About 233g
Package List:
1 * Brushed Motor
